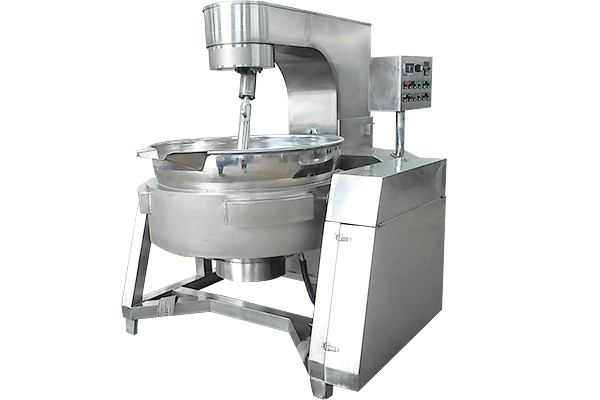

Planet mixing sandwich pan
Auther：332
Pubdate：2019-12-28 03:35:03
Working principle:
The stirring system adopts the method of rotation revolution, and the transmission ratio is an integral one, so there is no stirring blind spot in the pot. Using advanced transmission and sealing structure, the transmission part and the pot clean, sanitary. This series of equipment automatic/hydraulic type is the use of hydraulic thrust makes mixing arm, avoid dismantling blender, recycle hydraulic thrust tilting pot body, easy access to save manpower, material adopts stepless frequency conversion governor to improve the quantity of heat, high viscosity product mix evenly heating with easy operation, high efficiency, low consumption, long service life, compact structure, convenient maintenance etc., is a good performance of heat mixing equipment.
The planet stir pour material can be the whole pot body upside down, so the pot can be directly poured out of the material, very convenient. There are three ways of heating options: electric heating (electromagnetic or heat conduction oil), steam heating (direct steam), gas heating (natural gas, gas).
Product features:
1. This product is a tilting sandwich pot with bottom stirring, which solves the problem of difficult discharging and cleaning of the upper stirring, and occupies a major position in the same industry in China.
2. The bottom and side of the pot of the equipment are divided into three layers, with its own insulation, circulating oil path, fast heating, energy saving. Thus increasing production.
3, scraping bottom stirring system, completely solve the high viscosity material nutrients will not be destroyed, to meet the green environmental standards, is an ideal choice for food stuffing enterprises.
4, automatic discharge system, the use of circuit control, more convenient. The pot body can be tilted at any Angle, reducing labor force and improving production efficiency.
How to use it correctly:
1. At the end of each day's work, clear the accumulated materials at the bottom of the automatic planetary interlayer pot, and then open the clean ball valve to clean the inside of the pot. Note that after each fry, should immediately clean the instrument.
2.before work must check whether the pot and pot cover flat paste, pot mouth, material mouth cover, etc. Cover is tight, sealed reliably, whether the screw lock.
3. work with a soft cloth to wipe the surface of the stirring pot, to keep the surface of the stirring pot clean, to facilitate the next use.
4. Avoid putting your hand into the pot during the operation of the equipment to prevent accidents.
5. Before any maintenance or cleaning, the device should be disconnected from the power supply.
6. Stop operation immediately in case of any unusual response during operation, and start up after the cause is found out.
7. Before starting the stirring, it should be moved to check whether there is any abnormality in the stirring frame. If there is any, it should be eliminated immediately.
